Material Passports and Ideate Software

One specific area of digital transformation, regulatory shifts, or market demands is the Circular Economy  - which aims to eliminate waste and keep materials in use for as long as possible.

In construction, this means:

• Designing for disassembly and reuse
• Using materials that can be recycled or repurposed
• Tracking material flows to enable future recovery

Material Passports or Digital Product Passports are a key enabler of this shift they make it possible to know what’s in a building and how it can be reused.

A Material Passport is a structured digital record of all materials used in a building or product, including:

• Material type and origin
• Recyclability and reuse potential
• Embodied carbon and environmental impact
• Manufacturer and certification data

It’s like a “nutritional label” for buildings enabling smarter decisions about reuse, recycling, and sustainability.

Within Revit, this may mean the addition of additional data into the model to meet the requirements of the Material Passport. This data would need to be added by the way of the creation of new parameters either within the model, the elements (Revit Families) themselves or the Materials.

The parameter data will then have to be completed by the architects or manufacturer.

Ideate BIMLink allows you to export huge amounts of parameter or properties data, such as Material data to Microsoft Excel. Excel can be utilized to review, make changes then seamlessly push back changes into the Revit model.

Ideate BIMLink

You can edit existing parameter data as well as creating new Revit parameters. You can find a help file for that here.

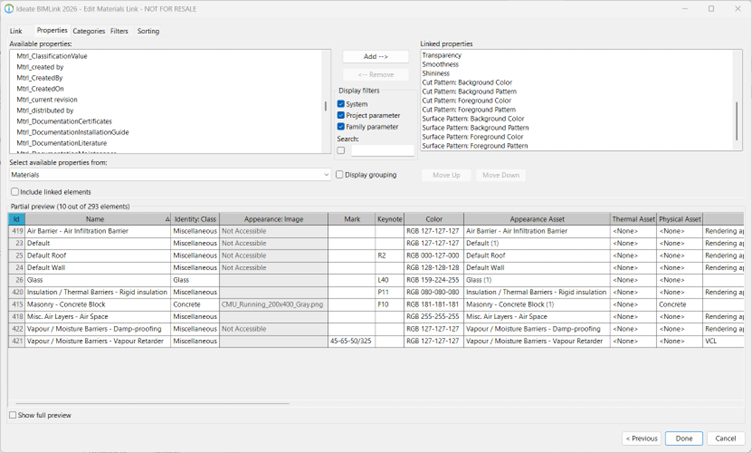

These can be added to the elements within the Revit model or to the materials themselves. An Example link definition is shown below.

The data can be exported to Excel, completed, and then reimported back into the model using Ideate BIMLink

Ideate Automation

This scripting solution runs time-intensive BIM tasks in the background during non-business hours or while your staff does more meaningful work. Either started manually or scheduled to run at night. Ideate Automation allows users to schedule scripts to pick a file, perform a task, and create an output file, so they can come into work with a time-consuming task already complete.

Combine Ideate Automation with Ideate BIMLink to manage all of your material data needs. For example, you could create a task with Ideate Automation to create new material parameters and edit existing parameter data.

You can take a look at our help file for that here.

This could be run on multiple Revit models or families and scheduled outside of normal business hours to gain further time and cost savings.
